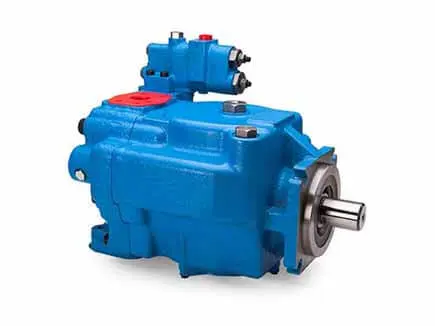

100% made in the USA, these replacement hydraulic piston pumps offer an outstanding blend of USA manufacturing quality and value. These pumps are 100% “plug-and-play” interchangeable with OEM pumps and are rated at or above Vickers quality standards for flow, pressure and efficiency.
Displacement per revolution: 6 in3
Max Operating Pressure: Up to 3000 PSI
Max Operating Speed: 1800 RPM (With Zero Inlet Pressure)
Weight 108 lbs (Basic) or 110 lbs (Thru-Drive)
Typical Flow: 37 GPM (at 1500 r/min) or 45 GPM (at 1800 r/min)
Inertia 0.1189 lb-in./sec2
Shaft Designation: SAE C (J44-32-1 Straight Keyed) for Basic Pumps, SAE C (J744-32-4) for Basic Pumps, 14T 12/24 DP FRSF Spline for Basic Pumps, SAE CC (J744-38-4) for Thru-Drive Pumps, 17T 12/24 DP FRSF Spline for Thru-Drive Pumps, or SAE CC (J44-38-1 Straight Keyed) for Thru-Drive Pumps
Recommended Oil Viscosity: 180 SUS and 80 SUS
Maximum Intermittent Temperature: 220 degrees Fahrenheit
*Displacement, maximum pressure, speed, input power, outlet flow, torque, and response times will vary based on operating temperature, hydraulic oil used, and inlet pressure. *Noise levels vary based on pressure and speed.
